series DSD RF coaxial connectors is mainly used in series D-SUB connector mix assembled in high/low frequency, and is suitable to assemble with 3~5mm flexible cable.
|

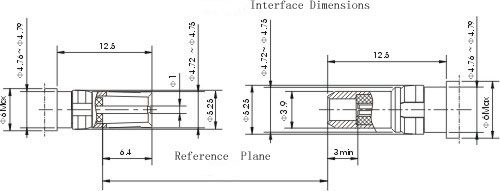

Key performance |
Material |
|
Characteristic impedance： 50Ω
Ferquency range： 0~2GHz
Contact resistance：
Center conductor：≤5.0mΩ
out conductor：≤2.0mΩ
Insulation resistance： ≥500MΩ
Insulator voltage withstanding： 500V
VSWR：≤1.3
Connector durability：500 |
Center contacts：
Male---brass，gold plated
Female---beryllium copper，gold plated
Bodies other metal parts：
brass，gold plated
：clipper :beryllium copper，nickel plated
Insulators：TFE |
Applicable spec/std： GJB681A(MIL-C-39012 ) CECC 22340
Products Series:
 DSD-UCL/JB3  DSD-UCL/KB3
 DSD-UCL/JWB3  DSD-UCL/J3A
 DSD-UCL/K3A  DSD-UCL/K5
 DSD-UCL/JW3A  DSD-UCL/JHD1
 DSD-UCL/JJ-1
|
