Series J.CC11 push-pull self-latching style .middle-power RF coaxial connector .The advantages are high vibration-proof ,reliable connection ,excellent mechanical and electrical performance.Its mainly used in military weapon systems. CCWX is improved from CC11,can crossing-over with CC11 ,has ability of interface self-adopting., the phase of connection is much more stability.the electrical performance is also improved.
|

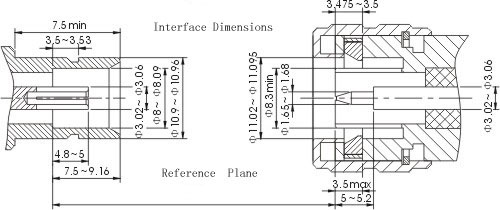

Key performance |
Material |
|
Characteristic impedance： 50Ω
Ferquency range： 0~6GHz
Contact resistance：
Center conductor≤1.5mΩ
out conductor≤0.2mΩ
Insulation resistance： ≥5000MΩ
Insulator voltage withstanding： 1500V
VSWR： straight≤1.30 right angle≤1.4
Connector durability：500 |
Center contacts：
Male---brass，gold plated
Female---beryllium copperorbrass，gold plated
Bodies other metal parts：
brass，nickel plated
Insulators：TFE |
Applicable spec/std： Applicable spec/std：J.Q/FD20002-09
Products Series:
 J.CC11-UCL/J5YAG  J.CC11-UCL/JW5YAG
 J.CC11-UCL/KFD-1 J.CC11-UCL/KFD-2 J.CC11-UCL/KFD-3
 J.CC11-UCL/KFD12  J.CC11-UCL/KFD3
 J.CC11(CCWX)-UCL/J501G  J.CCWX-UCL/J610G
|
