  ICON J.STWX8




Series J.STWX8 push-pull self-latching style RF coaxial connector is developed for use in military radar, convenient for insertion and withdrawal, reliable connection and vibration resistance.

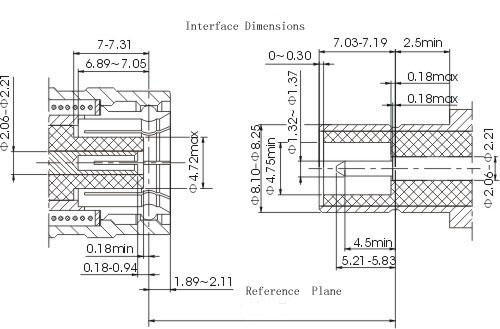

Key performance

Material

Characteristic impedance: 50Ω
Ferquency range: 0~4GHz
Contact resistance:
Center conductor≤1.5mΩ
out conductor≤1.0mΩ
Insulation resistance: ≥5000MΩ
Insulator voltage withstanding: 1500V
VSWR: ≤1.30
Connector durability:500

Center contacts:
Male---brass,gold plated
Female---beryllium copper,gold plated
Bodies other metal parts:
brass,gold plated、nickel plated
Insulators:TFE
Crimp ferrule:brass,nickel plated

Applicable spec/std: J.FD/Q2003-01

Products Series:

STWX8-UCL/JFD,STWX8-UCL/JFD1  STWX8-UCL/JFD2,STWX8-UCL/JFD3

STWX8-UCL/JFD4,STWX8-UCL/JFD5  STWX8-UCL/K235G

STWX8-UCL/K335G                                STWX8-UCL/K501G

STWX8-UCL/K4G,STWX8-UCL/K5G        STWX8-UCL/K3G

STWX8-UCL/KWB2G,STWX8-UCL/KWB3G STWX8-UCL/K5YG
