Series MCX-75 is super small snap-on style RF coaxial connector, The advantages are convenience for insertion and withdrawal, reliable vibration resistance.
|

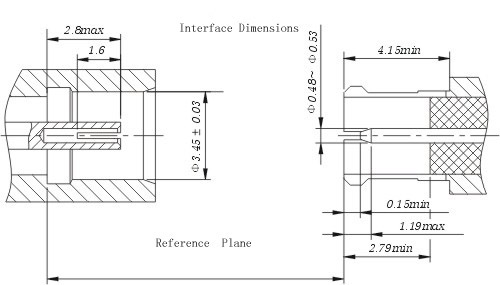

Key performance |
Material |
|
Characteristic impedance： 75Ω
Ferquency range： 0~2GHz
Contact resistance：
Center conductor≤4.0mΩ
out conductor≤2.0mΩ
Insulation resistance： ≥1000MΩ
Insulator voltage withstanding： 750V
Connector durability：500 |
Center contacts：
Male---brass，gold plated
Female---beryllium copper，gold plated
Bodies other metal parts：
brass，gold plated
Insulators：TFE
Crimp ferrule：brass，nickel plated
Gasket and seal rings：silicone rubber |
Applicable spec/std： IEC1169-36
Products Series:
 MCX-UCL/75J3，MCX-UCL/75J2  MCX-UCL/75JW2，MCX-UCL/75JW3
 MCX-UCL/75K3  MCX-UCL/75KF
 MCX-UCL/75KY  MCX-UCL/75JHD，MCX-UCL/75JHD1
 MCX-UCL/75KHD，MCX-UCL/75KHD1  MCX-UCL/75KWHD
MCX-UCL/75KHD2
|
