series SAA-75 is super small style RF coaxial connector, in common use construction contain push-pull self-latching style and screw-coupling style. The advantages are connection convenience, reliable connection and vibration resistance etc.
|

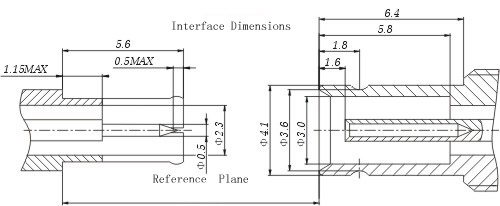

Key performance |
Material |
|
Characteristic impedance： 75Ω
Ferquency range： 0~1GHz
Contact resistance：
Center conductor≤10.0mΩ
out conductor≤3.0mΩ
Insulation resistance： ≥1000MΩ
Insulator voltage withstanding： 750V
Connector durability：500 |
Center contacts：
Male---brass，gold plated
Female---beryllium copper，gold plated
Bodies other metal parts：
brass，gold plated
Insulators：TFE
Crimp ferrule：brass，nickel plated
Gasket and seal rings：silicone rubber |
Applicable spec/std： DIN47297
Products Series:
 SAA-UCL/L75J3  SAA-UCL/L75JW3
 SAA-UCL/L75JW3A  SAA-UCL/75J32
 SAA-UCL/75KHD  SAA-UCL/75KHD1
 SAA-UCL/75KYWHD2  SAA-UCL/75KWHD
|
