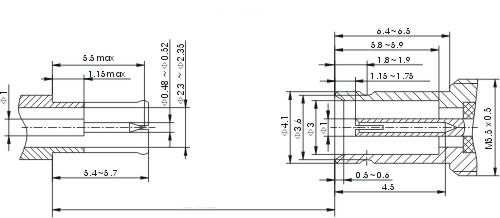

  ICON SAA




SAA(1.0/2.3)connector is miniature push-pull self-latching style connector.The SAA connector series is recommended for using in confined areas where the use of wrenches is not practical.

Key performance

Material

Characteristic impedance: 50Ω
Ferquency range: 0~6GHz
HzContact resistance:
Center conductor:≤10.0mΩ
Out conductor:≤3.0mΩ
Insulation resistance : ≥1000MΩ
Insulator voltage withstanding: 750V
VSWR:≤1.35
Connector durability :500

Center contacts:
Male---brass, gold plated.
Female---beryllium copper, gold plated
Bodies and other metal parts:
brass, gold or nickel plated
Insulators:TFE
Crimp ferrule: copper, nickel plated.
Crimp ferrule: copper, nickel plated.

Applicable spec/std: DIN47297



Products Series:

SAA-UCL/KYB3A                              SAA-UCL/J2.5C

SAA-UCL/KY3                                    SAA-UCL/KHD

SAA-UCL/KYHD                                  SAA-UCL/KWHD

SAA-UCL/KYWHD1                              SAA-UCL/KFD
                         SAA-UCL/KYWHD3
                         SAA-UCL/KYWHD4
