Series SSMB-75 is same as SMB RF coaxial connectors, expect for center conductor is different from insulator put to match the interface. It is miniature snap-on style 75Ωconnector.
|

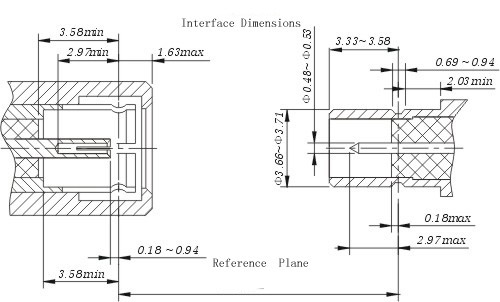

Key performance |
Material |
|
Characteristic impedance： 75Ω
Ferquency range： 0~2GHz
Contact resistance：
Center conductor≤6.0mΩ
out conductor≤1.0mΩ
Insulation resistance： ≥1000MΩ
Insulator voltage withstanding： 750V
Connector durability：500 |
Center contacts：
Male---brass，gold plated
Female---beryllium copper，gold plated
Bodies other metal parts：
brass，gold plated
Insulators：TFE
Gasket and seal rings：silicone rubber |
Applicable spec/std： GJB681A(MIL-C-39012)
Products Series:
 SSMB-UCL/75J2 SSMB-UCL/75J3  SSMB-UCL/75JW2 SSMB-UCL/75JW3
 SSMB-UCL/75K2 SSMB-UCL/75K3  SSMB-UCL/75KY2 SSMB-UCL/75KY3
 SSMB-UCL/75JHD
|
