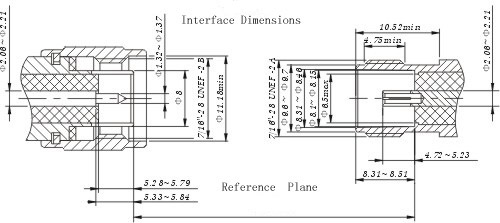

  ICON TNC-75












Key performance

Material

Characteristic impedance: 75Ω
Ferquency range: 0~2GHz
Contact resistance:
Center conductor≤2.0mΩ
out conductor≤0.2mΩ
Insulation resistance: ≥5000MΩ
Insulator voltage withstanding: 1500V
Connector durability:500

Center contacts:
Male---brass,gold plated
Female---brassorberyllium copper,gold plated
Bodies other metal parts:
brass,nickel plated
Insulators:TFE
Crimp ferrule:brass,nickel plated
Gasket and seal rings:silicone rubber

Applicable spec/std: GJB681A(MIL-C-39012)





     TNC-UCL/75J12                               TNC-UCL/75JW3Y TNC-UCL/75J12Y

      TNC-UCL/75J3Y TNC-UCL/75J12Y      TNC-UCL/75JFD

      TNC-UCL/75KFD                                 TNC-UCL/75KY
