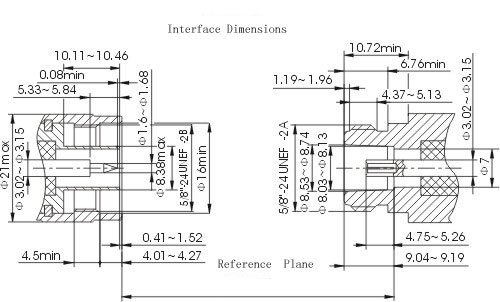

  ICON N Series Connector




These connectors are screw-type coupling and provide sturdy reliable connection. The N connectors are available for flexible , semi-rigid and corrugated cables as well as bulkhead and panel versions.

Key performance

Material

Characteristic impedance: 50Ω
Ferquency range: 0~11GHz
Contact resistance:
Center conductor≤1.5mΩ
out conductor≤0.2mΩ
Insulation resistance: ≥5000MΩ
Insulator voltage withstanding: 1500V
VSWR: ≤1.30
Connector durability:500

Center contacts:
Male---brass,gold plated
Female---beryllium copperorbrass,gold plated
Bodies other metal parts:
brass,nickel plated or silver plated
Insulators:TFE
Crimp ferrule:brass,nickel plated
Gasket and seal rings:silicone rubber
