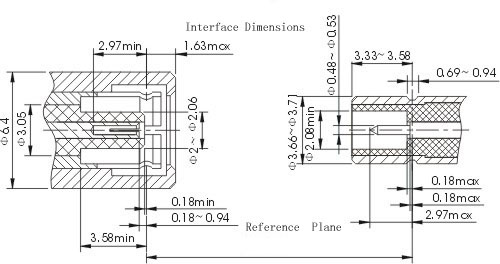

  ICON SMB Series




Key performance

Material

Characteristic impedance: 50Ω
Ferquency range: 0~4GHz
Contact resistance:
Center conductor≤4.0mΩ
out conductor≤2.0mΩ
Insulation resistance: ≥500MΩ
Insulator voltage withstanding: 1000V
VSWR: ≤1.30
Connector durability:500

Center contacts:
Male---brass、brass,gold plated
Female---beryllium copper,gold plated
Bodies other metal parts:
brass,gold plated、nickel plated
Insulators:TFE
 Crimp ferrule:brass,nickel plated、gold plated
 Gasket and seal rings:silicone rubber



                                                Applicable spec/std GJB681AMIL-C-39012

Similar Products
SMB-UCL/JB2

SMB-UCL/KWB1

SMB-JFB2

SMB-UCL/JYB2

SMB-KWB2N

SMB-KB3

SMB-UCL/JY2

SMB-UCL/JY3

SMB-UCL/K2

SMB-KY2

SMB-UCL/KW2

SMB-UCL/J3

SMB-UCL/J3A SMB-UCL/J5A

SMB-UCL/JF3A

SMB-UCL/JW2 SMB-UCL/JW3
