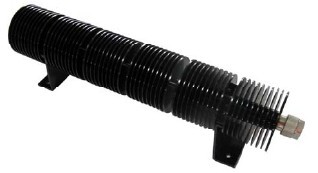

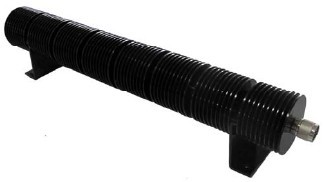

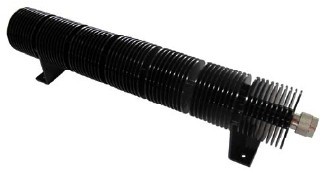

  ICON UCL-HT150




Model  UCL-HT150
Coaxial Fixed Termination
150 Watts DC-4GHz

Coaxial fixed terminations absorb RFµwave energy and are commonly used as dummy loads of antenna and ransmitter.They are also used as match ports in many multiport  microwave device such as circulator and directional coupler to make these ports which are not involved in the measurement be terminated in their characteristic impedance in order to ensure an accurate measurement.
UCL-HT150 serial high power coaxial fixed termination’s average power 2W-10KW, frequency range dc-18GHz and feature wide requency band, low VSWR, excellent capacity in anti-pulse and anti-burnout.

NOMINAL IMPEDANCE: 50Ω
AVERAGE POWER: 150W average to 25°C ambient temperature,
derated linearly to 15W @ 125°C.
PEAK POWER: 10KW (5μs pulse width with 1.5% duty cycle)
3rd ORDER INTERMODULATION(Optional):
Reflected Levels(IM3) <-100dBc with two input signals
@935MHz and 960MHz with average carrier power levels of +43dBm each.
TEMPERATURE RANGE:  -55°C ~+125°C
CONNECTOR TYPE:  N,7/16
WEIGHT:  1.8Kg
PHYSICAL DIMENSIONS: 210×80×60mm



Model Number



Frequency Range (GHz)



Max VSWR

UCL-HT150-1



DC-1



1.15

UCL-HT150-2



DC-2



1.20

UCL-HT150-3



DC-3



1.25

UCL-HT150-4



DC-4



1.30

2-44 UCL-HT150.pdf
